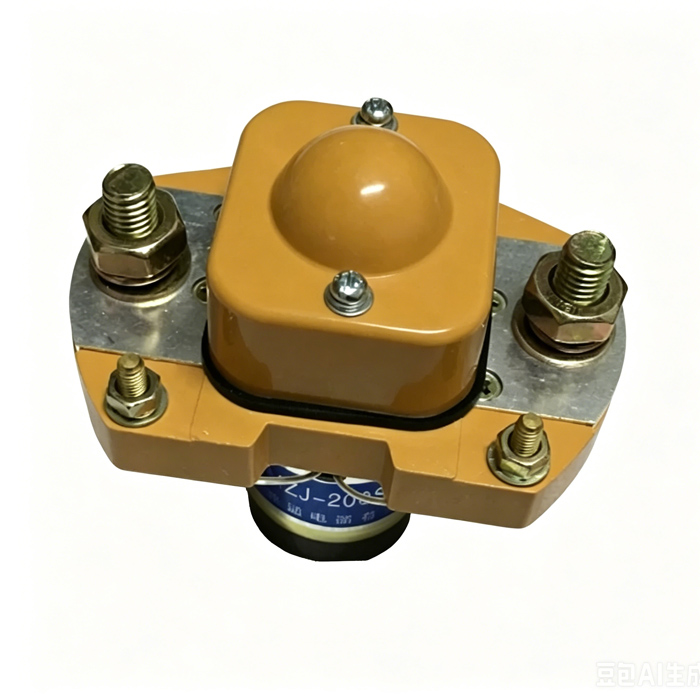

JIANGSU LUTONG MZJ-50D/MZJ-50S/MZJ-100D DC Contactor

Item No.: 03462
MZJ Contactor is suitable for the switch control of the electronic control circuit of electric forklift, battery car, tractor, excavator, brick machine, cleaning car, automobile air conditioner, communication power supply, uninterruptible power supply.
Description
Description
JIANGSU LUTONG MZJ-50D/MZJ-50S/MZJ-100D DC Contactor

Overview

The MZJ-50D contactor is a SPST (Single Pole Single Throw; normally open type) DC contactor, designed for direct current loads, particularly for motors on small electric vehicles such as mobility vehicle, electric cart, electric pallet stacker, order picker, etc. MZJ-50D has double breaking main contacts with silver alloy contact tips, which are weld resistant, hard wearing and have excellent conductivity.

  • Main rated load current of contact circuit (amps): 50A
  • Dielectric (volt) strength: 50Hz 1000V AC 1min
  • Current volt drop of main contact at 50A: Not above 60mV
  • Dimensions (LxWxH ): 55.5x54x38.5 mm
  • Mounting: two 4.7mm fixing holes in bracket; pitch-row: 47mm
  • Main contact full load rating voltage (recommended): Max. 48V (inductive load) / 60V (resistive load)
  • Mechanical life: 100,000 times
  • Electric life: 2,000,000 times

Specifications:

  • Model: MZJ-50D (ZJ50D, SPST, Single Pole Single Throw)
  • Voltage Options (Volts): 12V, 24V, 30V, 36V, 40V, 48V or 60V.
  • Ambient temperature:-25~+40°C
  • Altitude range:0~2000m
  • Max.relative humidity: 90% at 25°C
  • Installation method:vertically or horizontally
  • Voltage fluctuating:0.7~1.1Ue
  • Net weight: 0.19 kg
