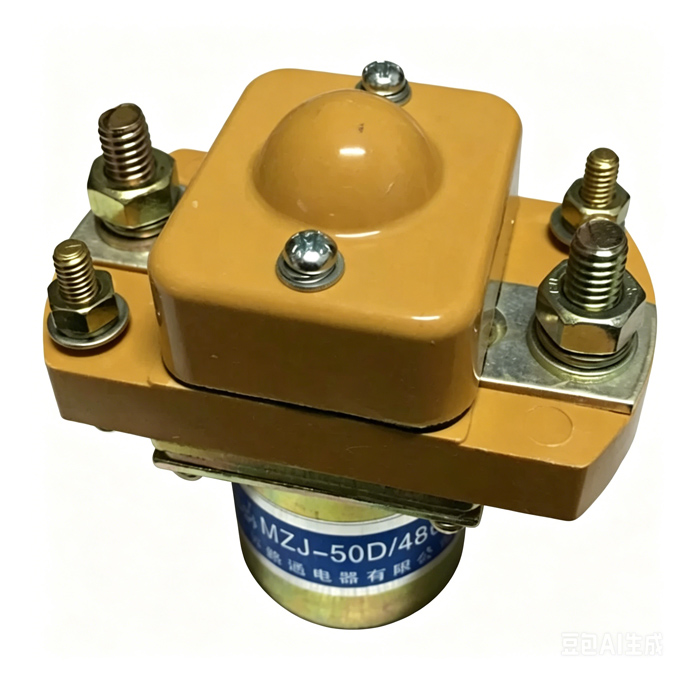

JIANGSU LUTONG MZJ-200S/1201 MZJ-200S/2401 MZJ-200S/3601 DC Contactor

Overview

The MZJ-200S/02 contactor is a SPST (Single Pole Single Throw; normally open type) DC contactor with auxiliary contacts (one normal open, one normal close), designed for direct current loads, particularly for motors on small electric vehicles such as light industrial trucks, electric forklift, electric pallet stacker, golf cart, etc.

Codification:

• 12V / 200A: MZJ-200S/1202
• 24V / 200A: MZJ-200S/2402
• 30V / 200A: MZJ-200S/3002
• 36V / 200A: MZJ-200S/3602
• 40V / 200A: MZJ-200S/4002
• 48V / 200A: MZJ-200S/4802
• 60V / 200A: MZJ-200S/6002

Specifications:

• Model: MZJ-200S/02 (double-coil, close contact chamber, one normal open auxiliary contact, one normal close auxiliary contact)
• Voltage Options (Volts): 12V, 24V, 30V, 36V, 40V, 48V or 60V.
• Ambient temperature：-25~+40°C
• Altitude range：0~2000m
• Max.relative humidity: 90% at 25°C
• Installation method：vertically or horizontally
• Voltage fluctuating：0.7~1.1Ue
• Net weight: 0.49 kg

MZJ-200S/02 has double breaking main contacts with silver alloy contact tips, which are weld resistant, hard wearing and have excellent conductivity.

• Main contact current rating (amps): 200A
• Auxiliary contact current rating (amps): 5A
• Dielectric (volt) strength: 50Hz 1000V AC 1min
• Current volt drop of main contact at 200A: Not above 80mV
• Dimensions (LxWxH ): 85x56x123 mm
• Mounting: two 5.5mm fixing holes in bracket; pitch-row: 47mm
• Main contact full load rating voltage (recommended): Max. 48V (inductive load) / 60V (resistive load)
• Mechanical life: 100,000 times
• Electric life: 2,000,000 times
